AC Power Meter with LCD Display & Current Transformer – 110V-250V, 100A, Overload Alarm & Energy Monitoring

AC Power Meter with LCD Display & Current Transformer – 110V-250V, 100A, Overload Alarm & Energy Monitoring

$29.95
$49.99 $29.95
Sale Sold out
Shipping calculated at checkout.

Monitor your home or workshop power usage with precision using this AC Power Meter with Large LCD Display. Designed for accuracy and versatility, this device provides real-time readings of power, current, voltage, frequency, power factor, and total power consumption — all in one convenient display.

Capable of measuring AC voltage from 110V to 250V with a maximum current of 100A, it’s ideal for a wide range of household appliances and electrical systems. The included AC current transformer eliminates the need for a separate purchase, making installation quick and hassle-free.

With built-in overload protection, customizable alarm thresholds, and memory that retains data even during power loss, this power meter offers both safety and convenience for any monitoring application.

Key Features:

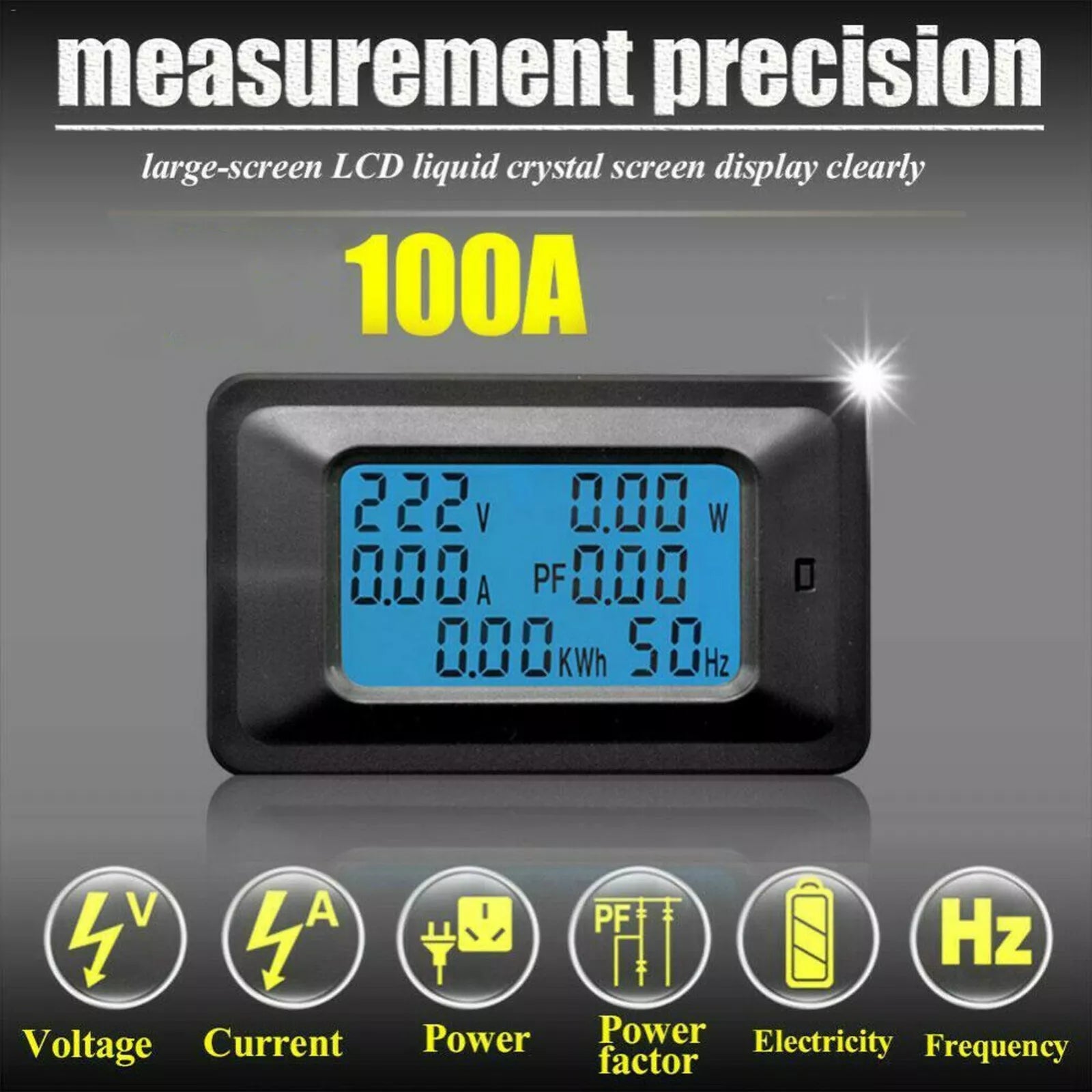

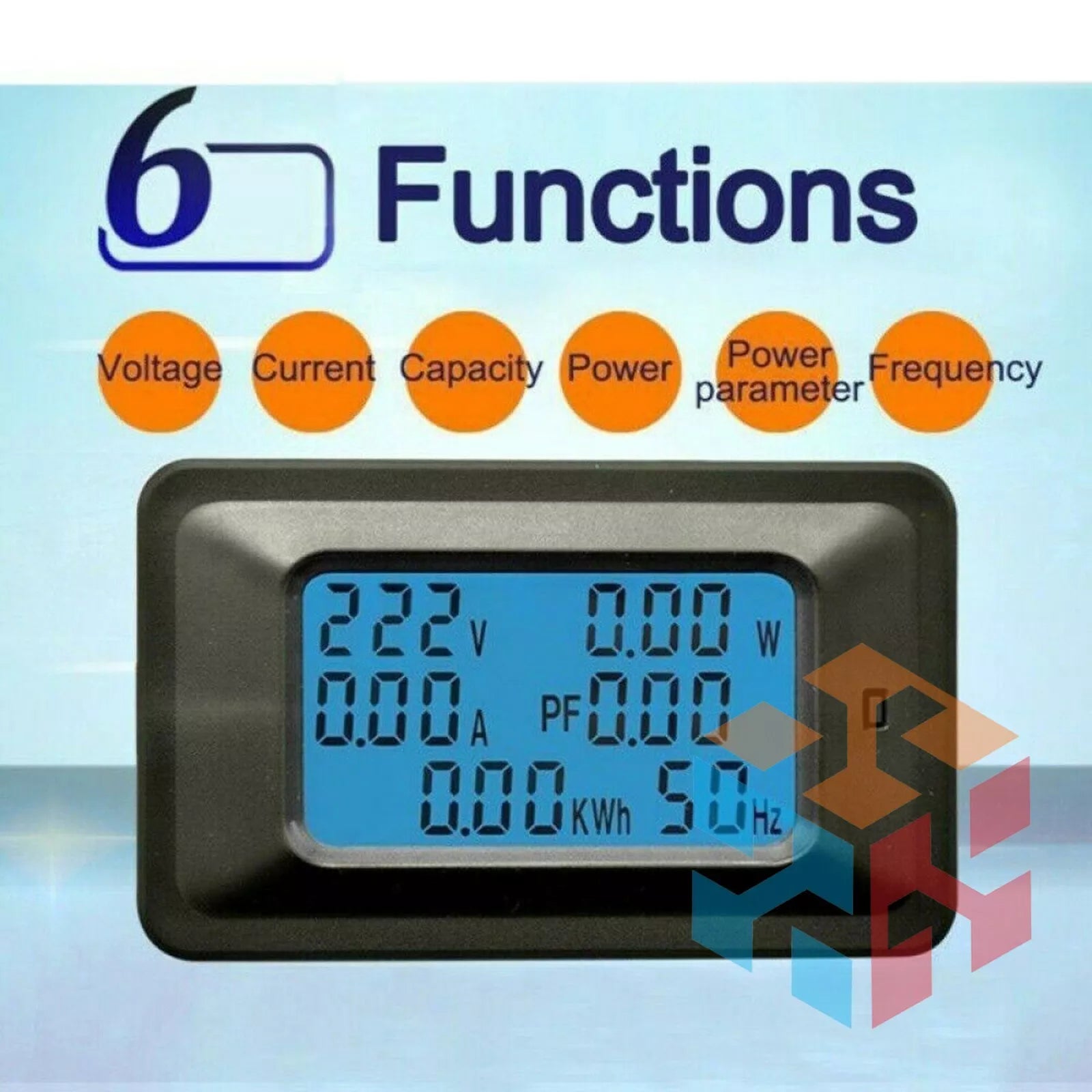

Comprehensive Power Monitoring
Displays power, current, voltage, frequency, power factor, and energy consumption simultaneously.

Wide Measurement Range
Supports AC 110V–250V input with a maximum current capacity of 100A and power up to 22,000W.

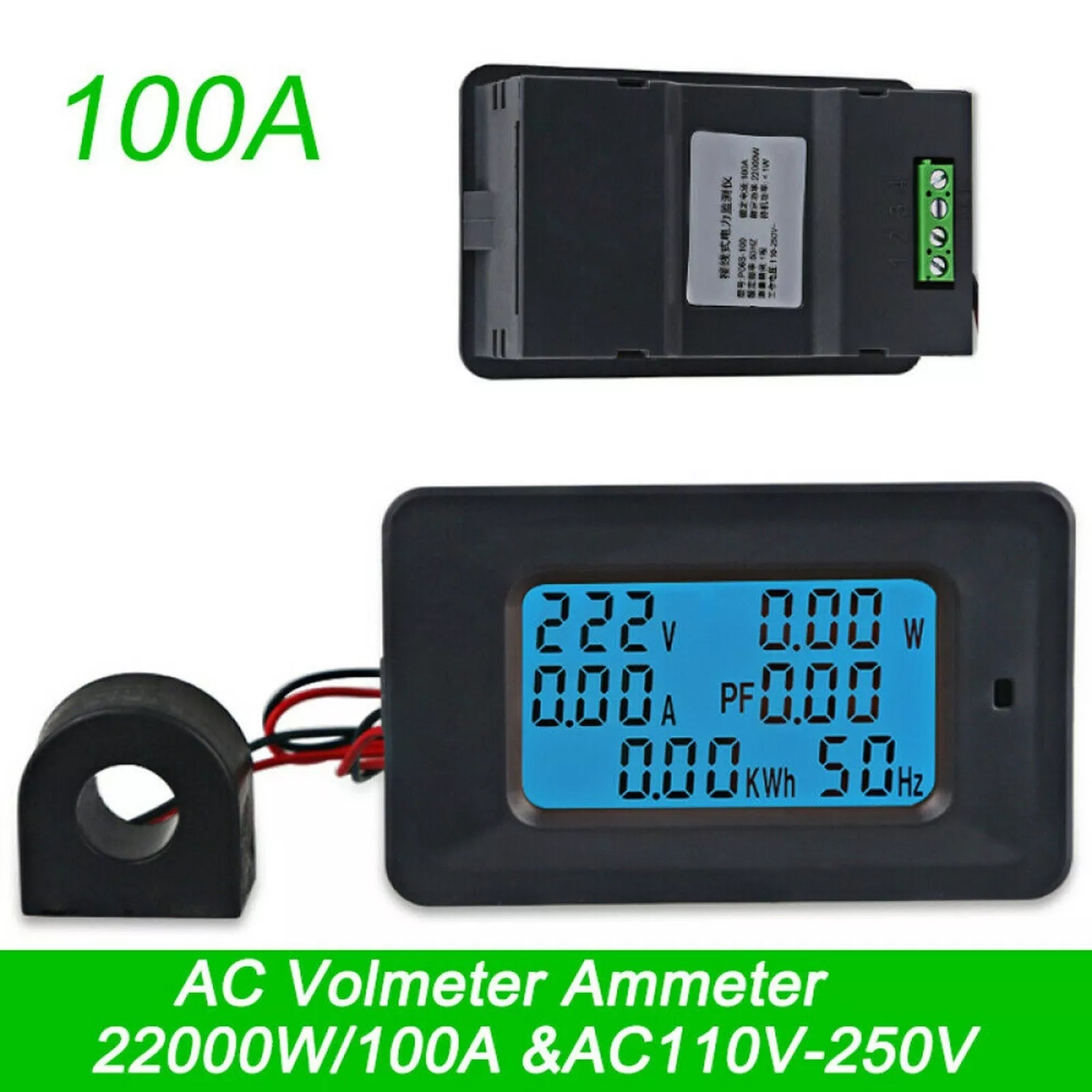

Includes AC Current Transformer
No need to buy separately — comes with a dedicated AC current transformer for accurate current measurement.

Overload Alarm & Energy Reset
Set power alarm thresholds and monitor overloads with built-in safety features. Easily reset energy data as needed.

Backlit LCD Display
Bright blue backlight enhances visibility and can be turned on/off manually. Retains data even during power outages.

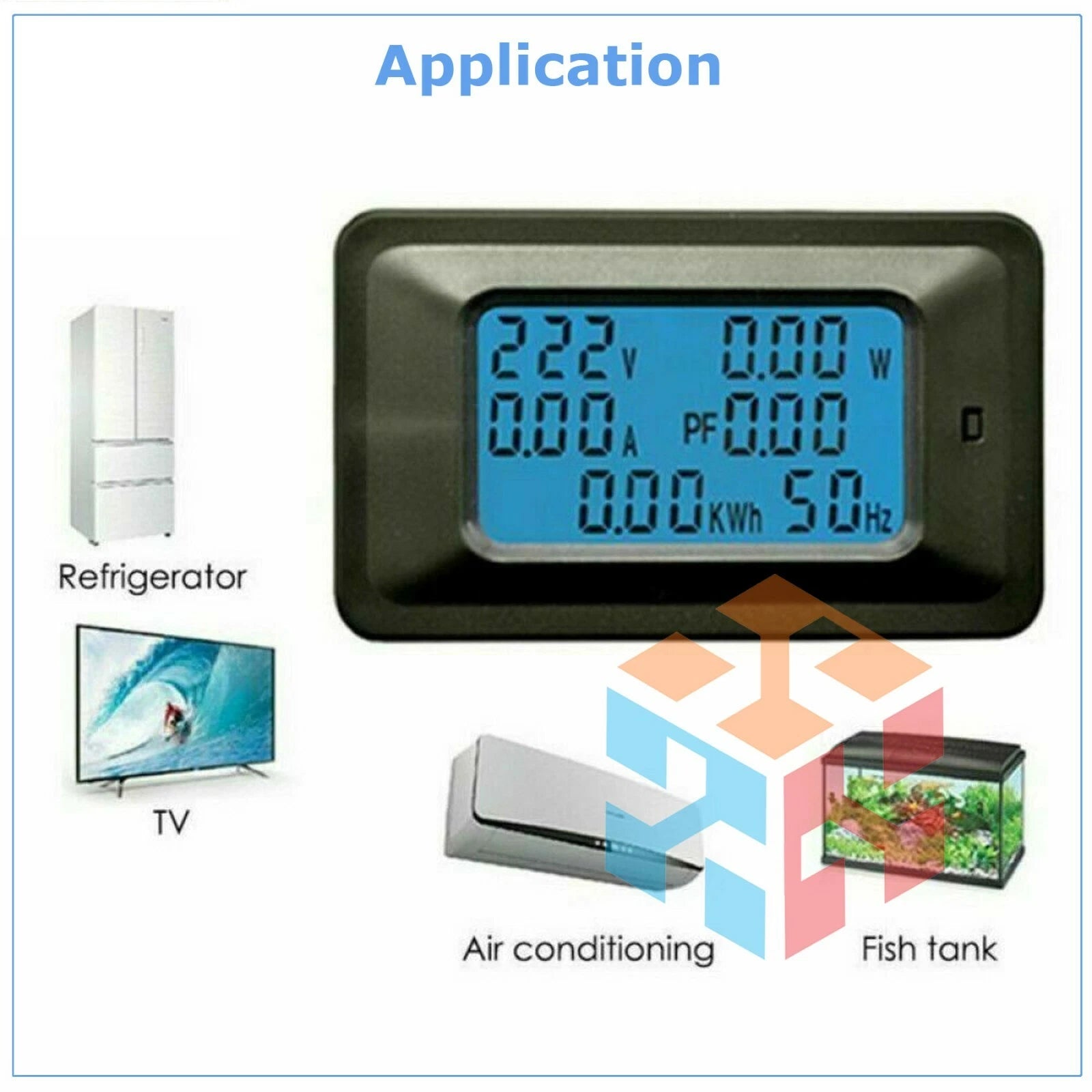

Versatile Applications
Suitable for monitoring most home appliances and electrical circuits within the supported voltage range.

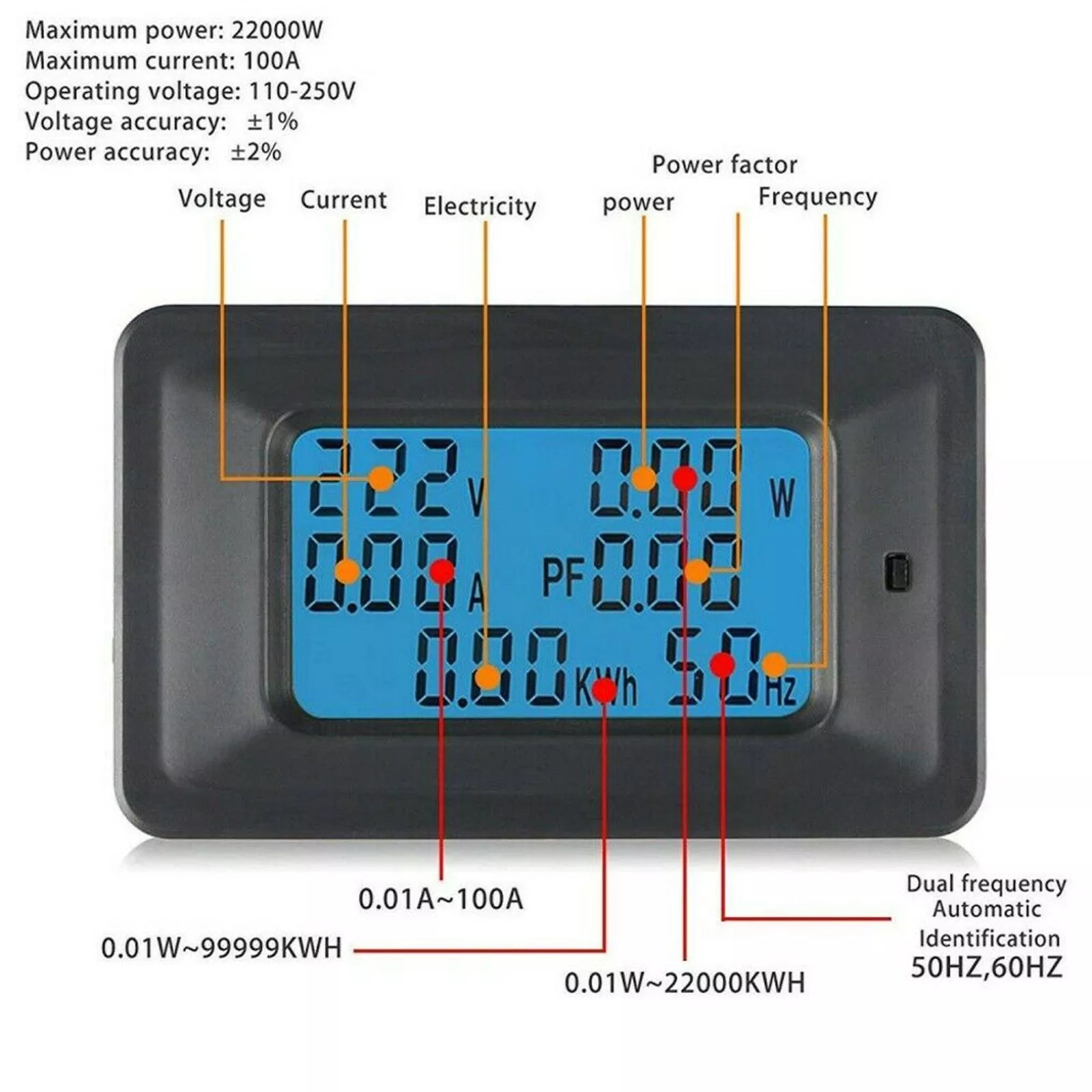

Specifications:

  • Device Type: LCD Panel AC Power Meter with AC Current Transformer

  • Max. Power: 22,000W

  • Max. Current: 100A

  • Operating Voltage: 110V–250V AC

  • Voltage Accuracy: ±1%

  • Power Accuracy: ±2%

  • Execution Standard: JB/T9282-1999

  • Application Range: Home appliances and general AC circuits (110V–250V)

  • Dimensions: 3.7 x 2.2 x 1 in (94 x 55 x 26mm)

  • Weight: 3.32 oz (94g)

  • Functions: Monitors power, current, voltage, frequency, power factor, energy consumption

What’s Included:

  • 1 x AC Power Meter with LCD Display

  • 1 x AC Current Transformer

  • 1 x User Manual
