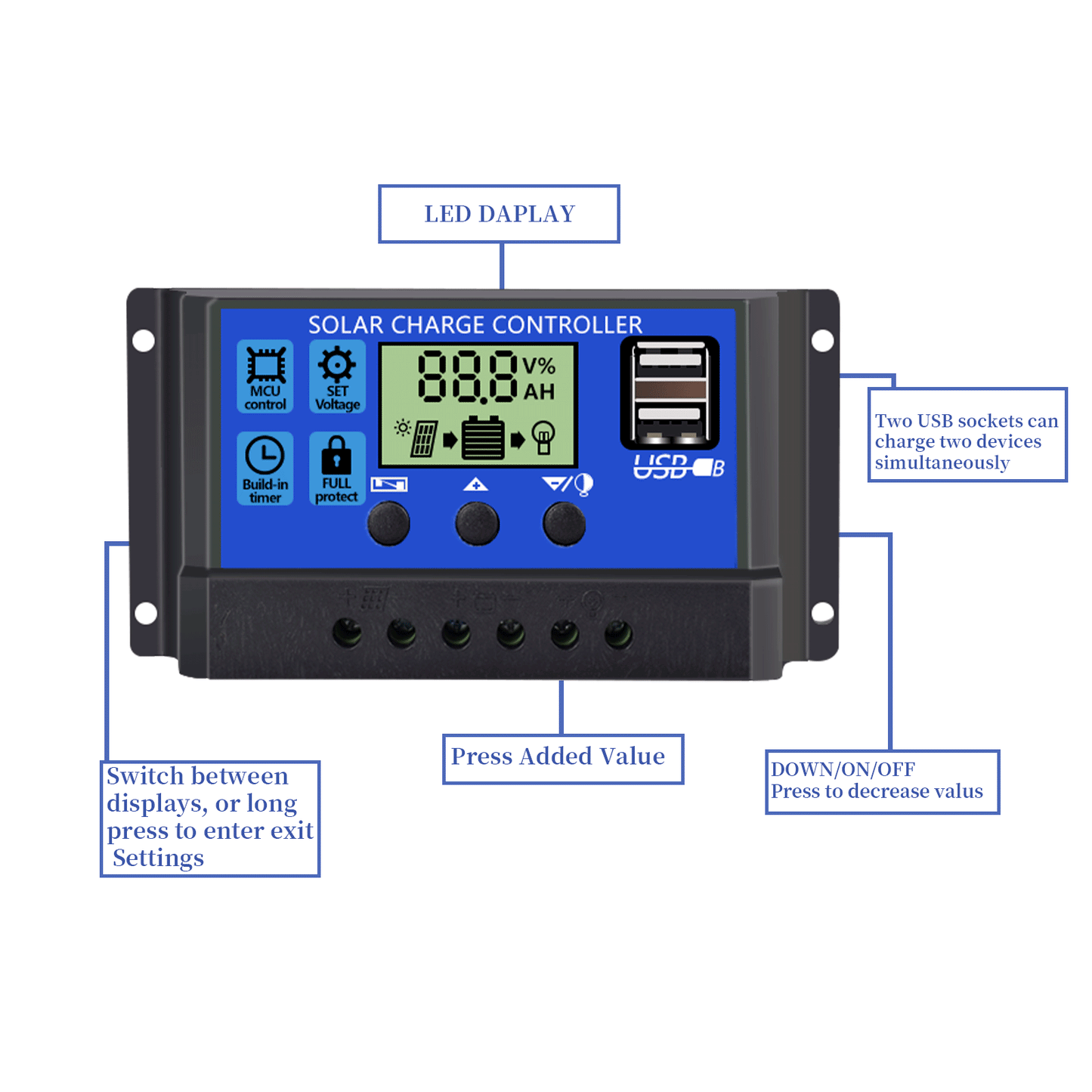

30A Dual USB Solar Panel Charge Controller with LCD: 12V/24V Auto Regulator for US Batteries
30A Dual USB Solar Panel Charge Controller with LCD: 12V/24V Auto Regulator for US Batteries
Couldn't load pickup availability
Take control of your solar-powered system with our 30A Dual USB Solar Panel Charge Controller, designed for 12V and 24V batteries. Featuring an easy-to-read LCD display, this auto regulator ensures efficient charge management for your solar panels. Compatible with US battery standards, its dual USB ports add an extra layer of convenience, letting you charge mobile devices directly.
Description:
Solar Charge Controller 30A
Material: PVC
Color: Blue
Current Output: 30A
Voltage: 12V/24V
Power Source: Solar
Size: 13.2CM x 7CM / 5.2'' x .8''
Package Include: 1X Solar Charge Controller
Product Features:
1. Build-in industrial micro controller.
2. Big LCD display screen, adjustable charge and discharge parameters, with power-off memory and other functions.
3. Fully 3-stage charge management.
4. Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection.
5. Dual USB output, the maximum current is 2.5A, support Iphone charging.
6. Dual mosfet reverse current protection, low heat production.
Safety Instruction
1. make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2. The battery cable should be as short as possible to minimize loss.
3. The regulator is only suitable for lead acid batteries: OPEN, AGM,GEL. It is not suitable for nickle metal hydride, lithium ions or other batteries.
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
Characteristics:
1. Build-in industrial microcontroller.
2. One-key configuration, digital display, automatic memory function.
3. Fully pwm-load management load.
4. Build-in short circuit protection, open circuit protection, reverse protection, over load protection
5. Dual mosfet Reverse current protection, low heat productions.
Connection of the System:
1. Connect the battery to the charge controller plus and minus. 1 will be displayed, in case of detecting 12 V battery, 2 in case of detecting 24 V battery.
2. Connect the photovoltaic module to the plus and minus regulator.
3. Connect to the consumer for the charge controller plus and minus.the reverse order applies when uninstalling!
An incorrect sequence order can damage the controller!
Item specifics
Size
5.2'' x .8''
Current Rating
30A
Inverter Technology
Central
Model
Solar Charge Controller
Country/Region of Manufacture
China
Connector Type
DC
Custom Bundle
No
Current Type
DC
System Configuration
Hybrid
Material
PVC
Power Source
Solar
Type
Solar Panel
Features
USB Port
Color
Blue
Item Length
5.2'' x .8''
Power
101-150 W
Current Output
30A
Application
Commercial, Home/Garden
Charging Mode
PWM (Pulse Width Modulation)
Category:
Regulator
Controller:
Charge Controller
Application Scenarios:
Solar Panel Battery
Resistance Properties
Dustproof
Voltage
12V/ 24 V
