2.5" Rotary Welding Positioner Turntable Table 3 Jaw Lathe Chuck 2-10RPM Tables

Description

The positioner is mainly used for welding of annular welds. The main function of the machine is to tilt and turn the workpiece so that the weld is applied in the best position such as horizontal and boat-shaped. It can be fixed on the workbench or clamped to the workpiece with specific tooling for manual welding, or it can be used in conjunction with a welding manipulator for automatic welding, as well as for cutting, grinding, assembly and testing.



Key Features

High Durability: The housing of the rotary welding positioner turntable table is made of cast iron that has good wear and corrosion resistance.

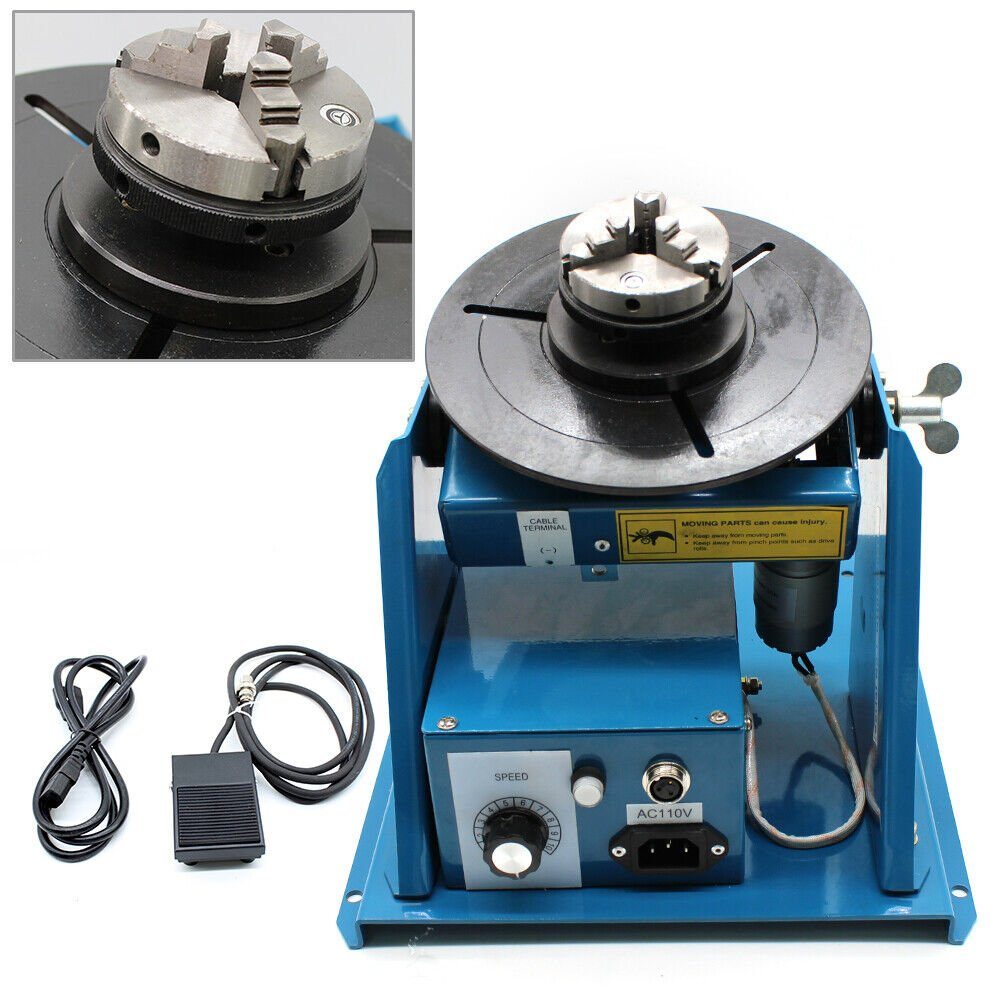

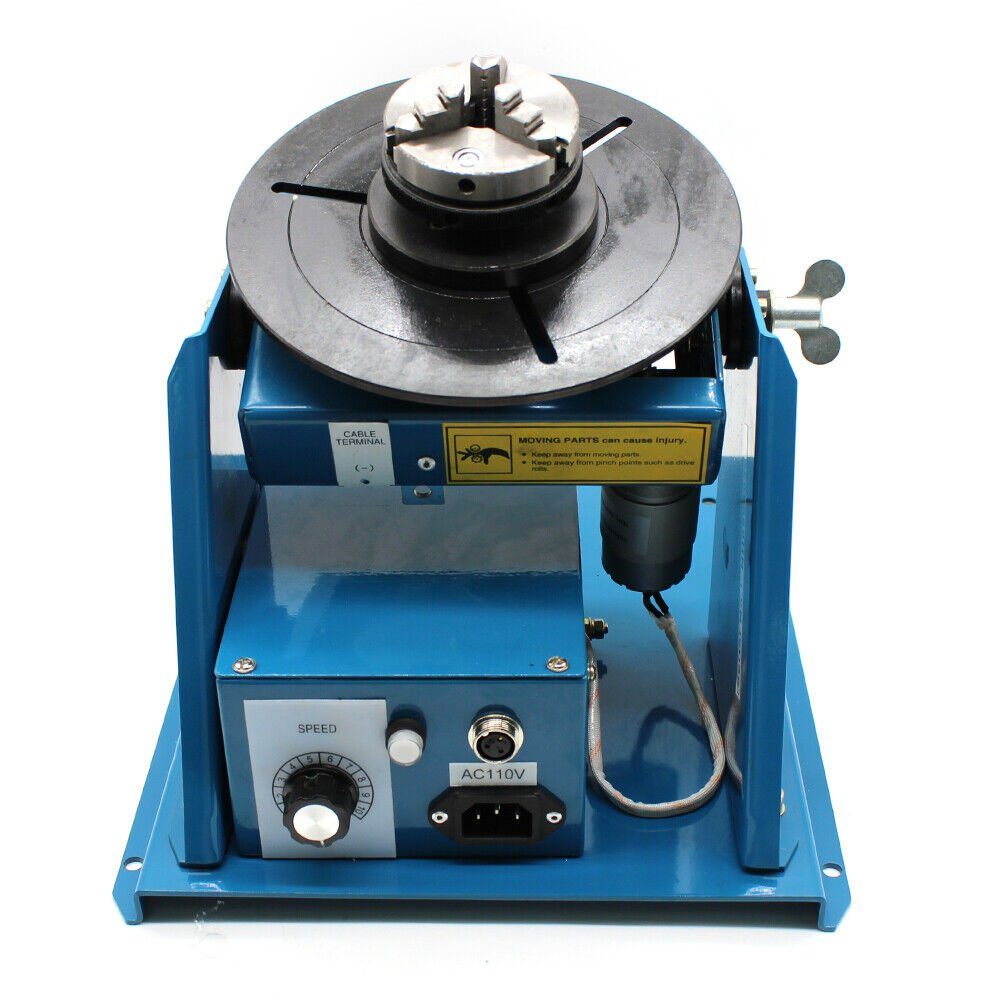

Adjustable Speed: The rotating speed is 2-10r/min, with knob for 1-10 steps stepless speed adjustment, large adjustment range.

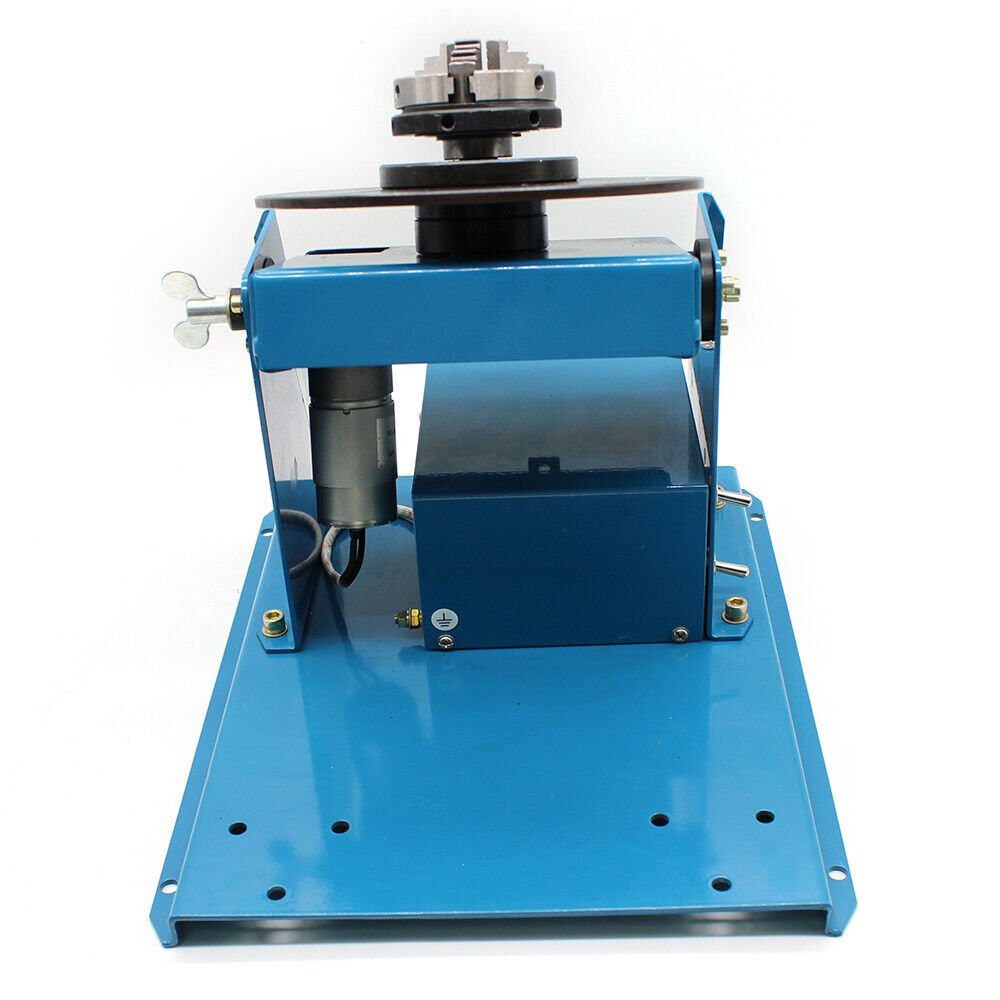

Tiltable Table: The welding positioner has a table flip angle of 0-90º and can be fixed at any angle with a tilt lock wrench.



High Positioning Accuracy: Foot switch to control table rotation, easy to control rotation. The clamp and worktable choose a simple mechanical connection way, so it is of high positioning accuracy.



High Stability: This rotary welding positioner turntable table adopts a high-quality Dc motor that makes the worktable run smoothly and stably.



Easy Operation: The device can be fixed on the workbench or specific tooling for clamping workpieces and manual welding, and can also be used with welding manipulators. Precise structure. Light weight, easy to operate and flexible to use.



Guaranteed After-sales Service: We aim to provide quality products and services, if you have any problems, please feel free to contact us, we will reply and solve the problem for you as soon as possible.



Details

Foot Switch Control: This rotary welding positioner turntable table uses foot switch control table rotation, which makes it easy to control rotation.



DC Motor: The high-quality Dc motor can make the worktable run smoothly and stably, thus improving efficiency.



Application

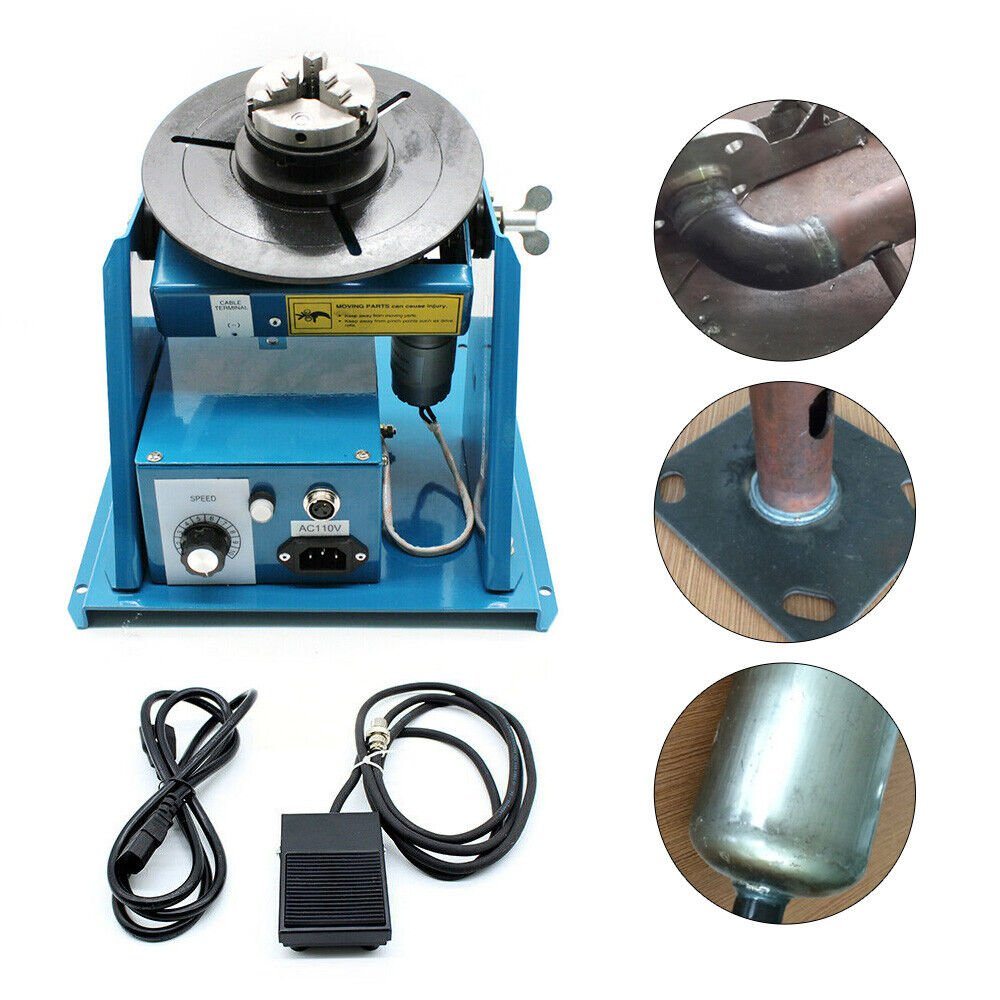

The device can be fixed on the working table or specific tooling for clamping workpiece with manual welding, can also be used with a welding operation machine to achieve automatic welding, but also for cutting, grinding, assembly, testing, and other processes. It is especially suitable for under 10kg flange, steel pipe, and other seam welding.

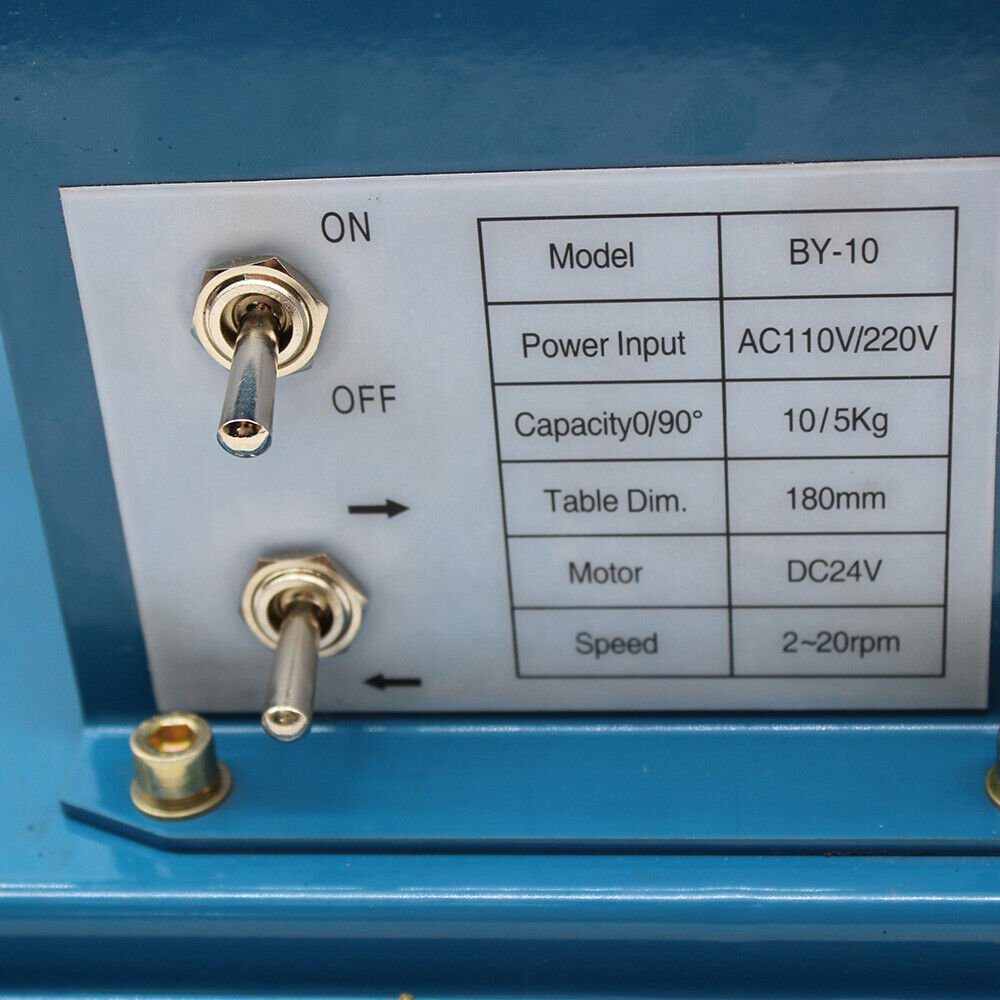

Specification

Input Voltage: 110V 50Hz
Horizontal Loading Capacity: 10Kg/22.05lbs

Vertical Loading Capacity: 5Kg/11.02lbs

Working Table Tilting Angle：0-90°
Table Diameter: 180Mm
Worktable Height: 220Mm
Worktable Speed: 2-10 r/Min

Rated Welding Current: 80A

Drive Motor: Dc24V  20W
Table Turning Angle: 0-90°
Workbench Rollover: Manual
Rotary Motor: 15W

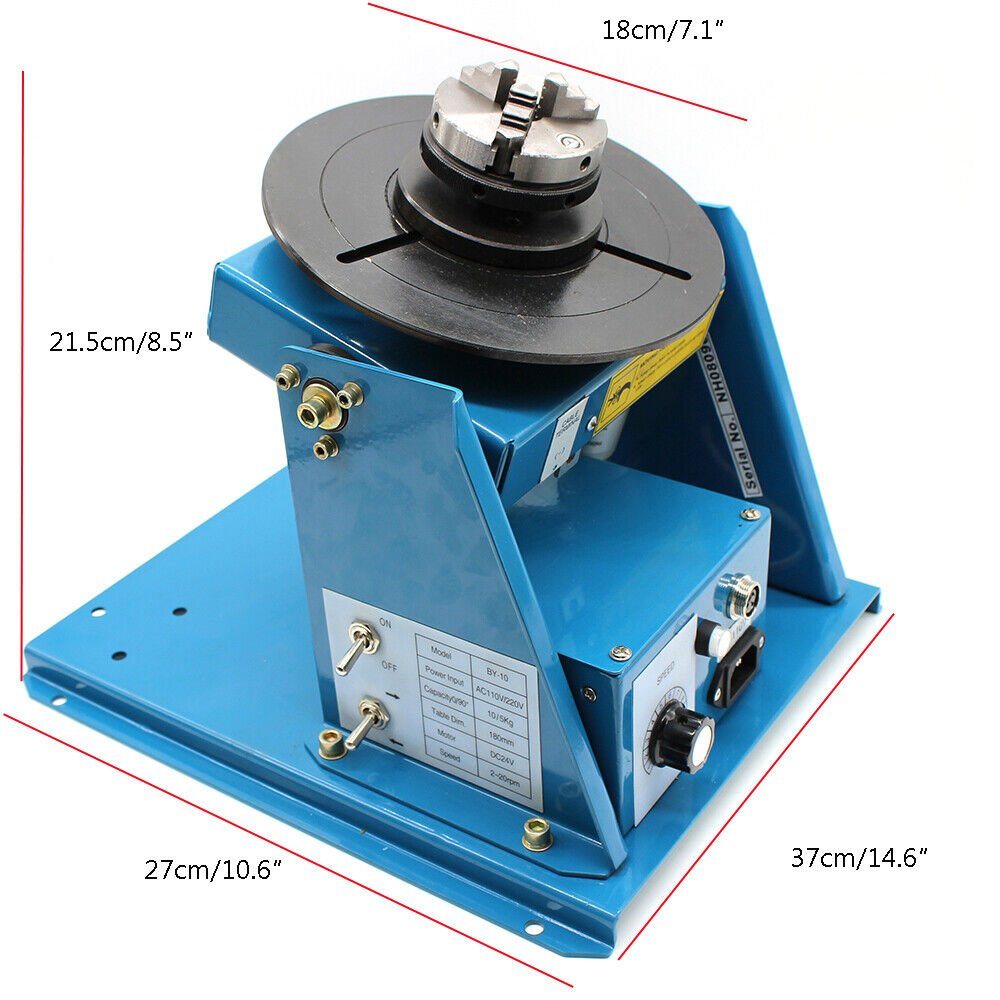

Product Dimensions: 37*27*21.5cm/14.6*10.6*8.5in

Net Weight: 9kg/19.84lbs

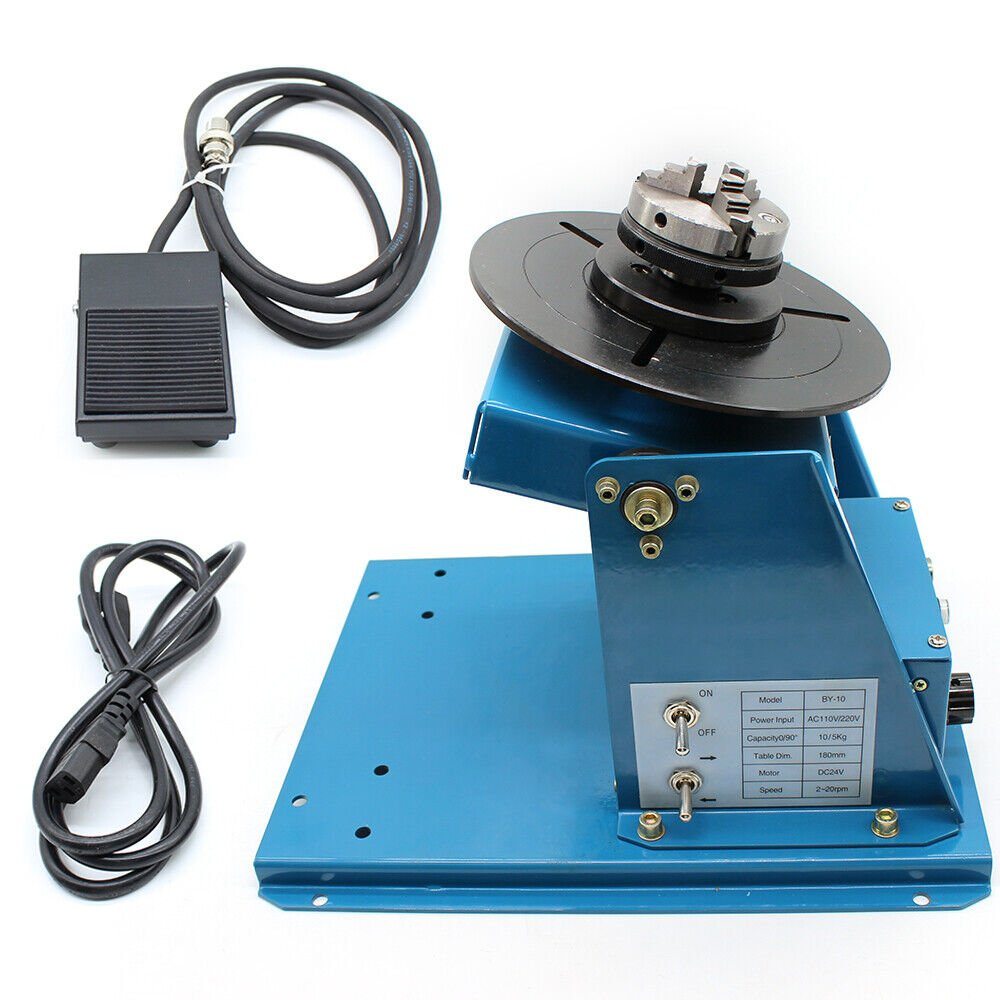

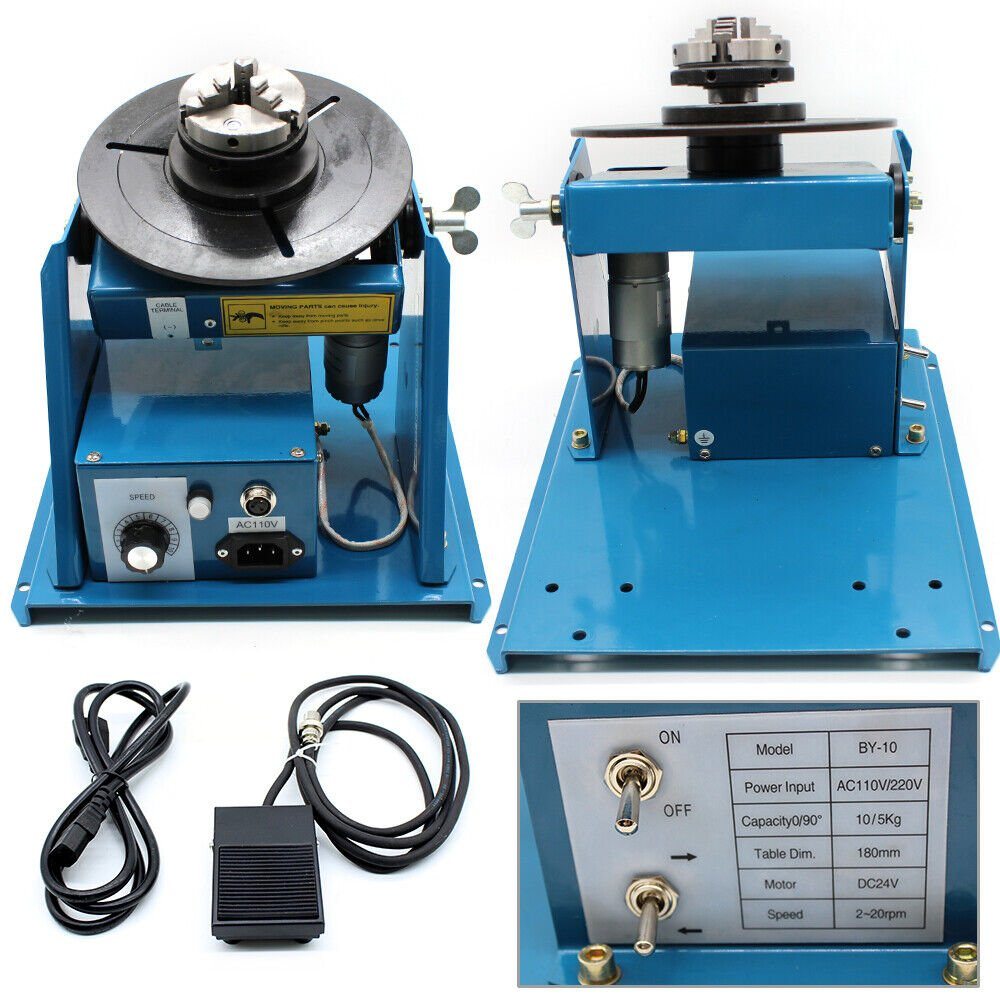

Package Included

1x Rotary Welding Positioner Turntable Table
1x Foot Pedal

1x Power Line



Notes

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
